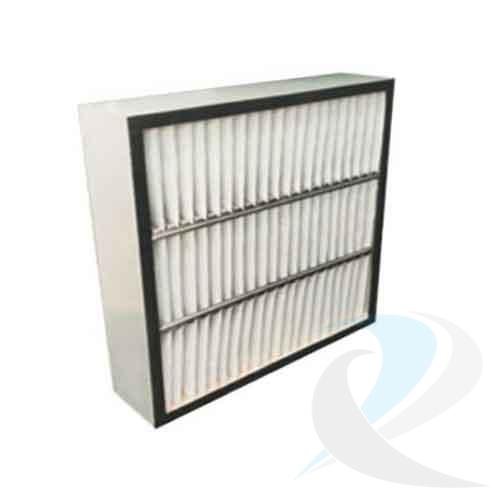

FINE Filters, also known as Microvee Filters, are the intermediate stage of air filtration designed to trap medium-sized airborne contaminants. They protect downstream HEPA filters by reducing particulate load and extending overall filter life.These filters are ideal for use in HVAC systems, air handling units (AHUs), cleanrooms, and process-controlled environments where fine particulate control is essential.
Raj Creation manufactures premium-grade FINE Filters using synthetic media with HDPE mesh or non-woven support layers, ensuring high dust-holding capacity and consistent airflow. Available in both Box Type and Flange Type, these filters come with casing materials such as Aluminium, GI, SS 304, and SS 316, offering structural durability and long life.
| STANDARD SIZES (in mm) | |
|---|---|
| 305 × 305 × 25 / 50 / 150 mm | 915 × 760 × 25 / 50 / 150 mm |
| 610 × 305 × 25 / 50 / 150 mm | 915 × 915 × 25 / 50 / 150 mm |
| 610 × 610 × 25 / 50 / 150 mm | 1220 × 610 × 25 / 50 / 150 mm |
| 915 × 610 × 25 / 50 / 150 mm | 1220 × 915 × 25 / 50 / 150 mm |
| Specification | Details |
|---|---|
| Efficiency | 97% for 3 micron, 97% for 5 micron |
| Filter Type | Box Type / Flange Type |
| Casing Material | Aluminum Extruded Profile / GI / SS 304 / SS 316 |
| Filter Media | Synthetic Media with HDPE Net, Non-Woven Net |
| Initial Pressure Drop | 3 mm of WC |
| Final Pressure Drop | 18 mm of WC |
| Support Rod | 5 mm Solid Aluminium Rod |
| Sealant | Polyurethane |
| Washable | Yes |
| Gasket Material | Neoprene or Silicon |
