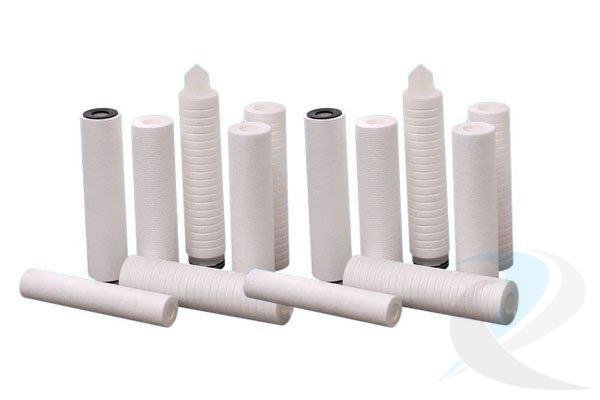

SPUN BOND and PP (Polypropylene) PLEATED CARTRIDGE Filters are advanced filtration solutions designed for liquid and air filtration applications where fine particulate removal and chemical resistance are critical. These filters are widely used in industries such as pharmaceuticals, food processing, water treatment, and chemicals, thanks to their durability, non-reactive properties, and high filtration efficiency.
At Raj Creation, we manufacture premium-grade PP Pleated and Spun Bonded Cartridge Filters that offer high surface area, low pressure drop, and consistent micron-level filtration. They are constructed using 100% polypropylene components, making them ideal for corrosive or high-purity environments. These filters are available in multiple lengths, end cap configurations, and micron ratings to suit your exact process needs. We offer both DOE (Double Open End) and SOE (Single Open End) designs compatible with a wide range of housings.
| CARTRIDGE FILTER SPECIFICATIONS | |
|---|---|
| Available Lengths | 10″, 20″, 30″, and 40″ |
| Outer Diameter | 63–70 mm |
| End Cap Types | DOE, SOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin |
| Micron Rating Options | 0.2 µm, 0.5 µm, 1 µm, 5 µm, 10 µm, 25 µm, 50 µm, 100 µm |
| Specification | Details |
|---|---|
| Filter Media | Polypropylene (Spun Bonded or Pleated) |
| Micron Ratings | 0.2 µm to 100 µm |
| Outer Diameter | ~63–70 mm |
| Lengths Available | 10″, 20″, 30″, 40″ |
| End Cap Options | DOE / 222 / 226 (Flat or Fin) |
| Gasket / O-Ring Material | EPDM / Silicon / Viton / NBR |
| Max Operating Temperature | Up to 80°C (standard), 120°C (optional) |
| Operating Pressure | Up to 4 bar |
| Flow Rate | 5–20 LPM (varies with micron and length) |
| Washable | Yes (Pleated cartridges with low-pressure rinse) |
| Core & End Support | Polypropylene (non-metallic, rust-free) |
